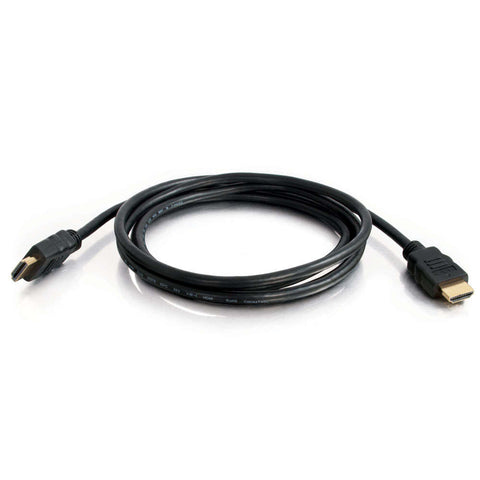

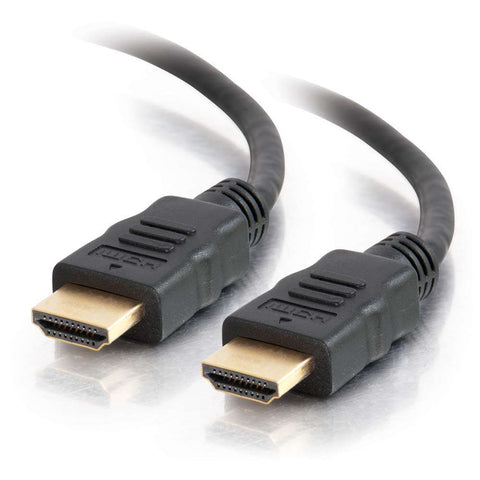

Simplecom CAH410 1M High Speed HDMI Cable with Ethernet (3.3ft)
The Simplecom High Speed HDMI with Ethernet Cable is perfect for home theatre or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4k (2160p). The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.
Features
4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
Supports HDMI features including 4k resolution and 3D video, Deep Color and x.v. Color
Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
Up to 1536kHz audio sample frequency for the highest audio fidelity
Simultaneous delivery of dual video streams to multiple users on the same screen
Simultaneous delivery of multi-stream audio to multiple users (up to 4)
Support for the wide angle theatrical 21:9 video aspect ratio
Dynamic synchronization of video and audio streams
CEC extensions for control of consumer electronics devices through a single control point
Gold plated connectors
Specifications
Nominal Velocity of Propagation - 10.2Gbps
DC Resistance - 300V
Dielectric Strength - AC 500V/minute
Insulation Resistance - 100
Nominal Attenuation - 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
HDMI (3D, Deep Color, x.v.Color, Dolby True HD, and DTS-HD Master Audio), Full 1080p resolution
4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
3D video, Deep Color and x.v. Color
Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
Up to 1536kHz audio sample frequency for the highest audio fidelity
High bandwidth (340 MHz/10.2 Gbps) for high speed data transfer
HDMI-CEC system control compatibility
HDMI Ethernet Channel (when used with HDMI Ethernet channel supported source and sync equipment).
Physical Characteristics
Length - 1 Meter
Drain Wire - 30AWG (07/0.10), Tinned Copper
Foil Shield - Aluminum Foil, 100% Coverage
Braided Shield - 16/4/0.12, Al/Mg
Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm
Connector Type - HDMI - Type A
Pin Construction - Phosphor Copper
Plating - 1m Gold
Voltage Rating - 30V
Minimum Bend Radius - 60
Temperature Rating - 80C
Operating Temperature Range - -20 - 80C
Storage Temperature Range - -25 - 85C
Approvals - RoHS Compliant
Package Type Polybag
Package contents:
1x Simplecom CAH410 1M High Speed HDMI Cable with Ethernet (3.3ft)
